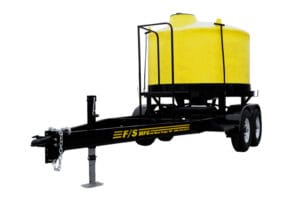

Cone Bottom Trailers

The Tru-Kleen™ Cone Bottom Trailers are at your service to load up your liquid fertilizer and take it to the field! With a Tru-Kleen™Cone Bottom Trailers you can stop wasting time making trips back to the farm for every fill.

Take advantage of all the benefits of a Tru-Kleen™ product! You can rest assured that you will harvest every last drop of product out of your tanks with the 10-degree cone bottom and a male threaded outlet.

  • Tru-Kleen™ Cone Bottom Tank
  • 2 5/16” Ball Hitch Adjustable Height
  • Slipper Leaf Spring Suspension
  • 4 Wheel Electric Drum Brakes
  • LED turn Signal, Brake, and Running Lights
  • Motor Mount
  • 3 Holes in Frame to Route Plumbing
  • Anti-Vortex Plate
  • Safety Chains
  • Hose Hangers
  • Full square Shaped Fenders
  • Heavy Duty – 16# Per/Gallon Tank Rating
  • 5 Year Prorated Tank Warranty
  • 1 Year Trailer Warranty
  • Anti-Vortex Plate
  • Tanks now available in Yellow, Black, or Natural



FSCADDY 1000

SPECIFICATIONS FSCADDY10-* FSCADDY10D-*
*Specify Tank Color | (Y)=Yellow | (N)= Natural
GWR (Gross Weight Rate) 14,000 lbs 14,000 lbs
Dry Trailer Weight 2,260 lbs 3,000 lbs
Deck (W x L) – 68 1/2” x 50” with removable driver side bar
Height 82″ 82″
Overall Width 91” 91”
Overall Length 206” 255”
Step 3 step ladder with railing for easy access to tank lid 3 step ladder with railing for easy access to tank lid
Tires 235/80R16 10 ply high speed tires 235/80R16 10 ply high speed tires
Axles (2) 7,000 lb with greased bearing hubs (2) 7,000 lb with greased bearing hubs
Jack 8,000 lb side wind telescoping leg with 26″ lift 12,000 lb side wind telescoping leg with 26″ lift
Frame 7″ channel 9.8 lb/ft 7″ reinforced channel 9.8 lb/ft
Price CALL CALL

FSCADDY 1300



SPECIFICATIONS FSCADDY13-* FSCADDY13D-*
*Specify Tank Color | (Y)=Yellow | (N)= Natural
GWR (Gross Weight Rate) 14,000 lbs 16,000 lbs
Dry Trailer Weight 2,260 lbs 3,000 lbs
Deck (W x L) – 68 1/2” x 50” with removable driver side bar
Height 96″ 96″
Overall Width 91” 91”
Overall Length 206” 255”
Step 3 step ladder with railing for easy access to tank lid 3 step ladder with railing for easy access to tank lid
Tires 235/80R16 10 ply high speed tires 235/85R16 14 ply high speed tires
Axles (2) 7,000 lb with greased bearing hubs (2) 8,000 lb with greased bearing hubs
Jack 8,000 lb side wind telescoping leg with 26″ lift 12,000 lb side wind telescoping leg with 26″ lift
Frame 7″ channel 9.8 lb/ft 7″ reinforced channel 9.8 lb/ft
Price CALL CALL

FSCADDY 1600



SPECIFICATIONS FSCADDY16-* FSCADDY16D-*
*Specify Tank Color | (Y)=Yellow | (N)= Natural
GWR (Gross Weight Rate) 20,000 lbs 20,000 lbs
Dry Trailer Weight 2,260 lbs 3,000 lbs
Deck (W x L) – 68 1/2” x 50” with removable driver side bar
Height 112″ 112″
Overall Width 95” 95”
Overall Length 206” 255”
Step 3 step ladder with railing for easy access to tank lid 3 step ladder with railing for easy access to tank lid
Tires 235/75R17.5 16 ply high speed tires 235/75R17.5 16 ply high speed tires
Axles (2) 10,000 lb with greased bearing hubs (2) 10,000 lb with greased bearing hubs
Jack 8,000 lb side wind telescoping leg with 26″ lift 12,000 lb side wind telescoping leg with 26″ lift
Frame 7″ channel 9.8 lb/ft 7″ reinforced channel 9.8 lb/ft
Price CALL CALL

FSCADDY PLUMBING PACKAGES



PART# GAL. DESCRIPTION
FSCADDY-PK2 2″ Plumbing Package CALL
FSCADDY-PK3 3″ Plumbing Package CALL
