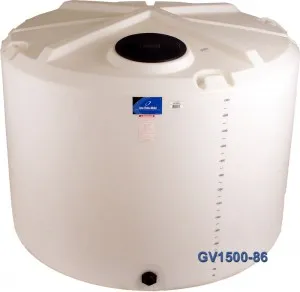

Gusseted Vertical Tanks are free standing with a flat bottom for indoor or outdoor installations. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.5 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.
View technical drawings by clicking on the part number below.
| Part No. | Capacity | Weight | Dimensions | Lid | Fitting | Specific Gravity |
| GV1050-86 | 1050 Gallon | 177 | 86 x 50 | 16″ | 2″ | 1.5 |
| GV1350-86 | 1350 Gallon | 209 | 86 x 62 | 16″ | 2″ | 1.5 |
| GV1500-86 | 1500 Gallon | 230 | 86 x 69 | 16″ | 2″ | 1.5 |
| GV1650-86 | 1650 Gallon | 257 | 86 x 74 | 16″ | 2″ | 1.5 |
| GV4995-142 | 4995 Gallon | 952 | 142 x 97 | 16″ | 3″ | 1.7 |
| GV7000-142 | 7,000 Gallon | 1752 | 142 x 127 | 16″ | 3″ | 1.7 |
| GV10500-2500 | 10,500 Gallon | 2502 | 142 x 179 | 16″ | 3″ | 1.5 |
| GV10500-2800 | 10,500 Gallon | 2802 | 142 x 179 | 16″ | 3″ | 1.7 |
| GV12500-142* | 12,500 Gallon | 3402 | 142 x 208 | 16″ | 3″ | 1.7 |
| GV15500-142 | 15,500 Gallon | 4002 | 142 x 253 | 16″ | 3″ | 1.7 |
| Part No. | Capacity | Weight | Dimensions | Lid | Fitting | Specific Gravity |
