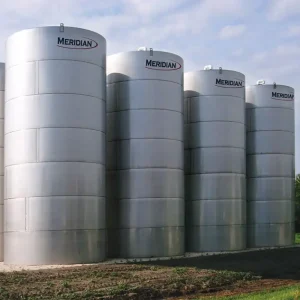

Meridian’s stainless steel liquid storage tanks are manufactured to store a variety of liquid products, including chemicals, fertilizer and oils. These stainless steel storage tanks are manufactured to engineered specs in a controlled environment and will safely accommodate liquid products in a contaminate free setting. The liquid tanks follow a precise procedure that includes the back welding of interior seams and pressure testing. The manufacturing process also includes an acid wash to remove any impurities. Liquid fittings are added to the tanks, making the handling of liquid products trouble-free. Each finished product is inspected of all workmanship, ensuring a quality tank every time.
For liquid storage that is unsurpassed, a Meridian stainless steel tank is the best choice.
FEATURES:
- 304L stainless steel to handle the safe storage of highly corrosive fertilizers
- 24” manway for easy access to interior of tank
- 4” vented dome cap
- 10 degree slope on dome
- Two 4” FPT discharge and recirculating ports
- Volume labelled sight gauge
- ¾” sight gauge tube with stainless auto shutoff valve
- Lifting Lugs
- 2 year manufacturer’s warranty
ADDITIONAL FEATURES:
- Manufactured to engineered specs in a controlled environment.
- All workmanship is visually inspected for quality.
- Process includes pressure testing and an acid wash to remove any impurities.
- Capable of storing Nitrogen, Phosphate and Sulphur.
- Appealing exterior that will not need painting or repairs of nicks that will occur with other materials.
- Interior will only need periodic cleaning from foreign material that may come with the fertilizer.
- No flaking, cracking, splitting or fibres coming off the walls of a stainless steel tank.
- Provide many years of maintenance free storage of your valuable fertilizer.
| Part No. | Dimension A | Dimension B | Qty Anchors | Weight | Volume |
| 67225 | 25′ | 27′-2 7/16″ | 4 | 6966 lb | 2775 ft3 |
| 67230 | 30′ | 32′-2 7/16″ | 4 | 8092 lb | 3330 ft3 |
| 67235 | 35′ | 37′-2 7/16″ | 4 | 9194 lb | 3885 ft3 |
| 67240 | 40′ | 42′-2 7/16″ | 8 | 10674 lb | 4440 ft3 |
| Part No. | Dimension A | Dimension B | Qty Anchors | Weight | Volume |
