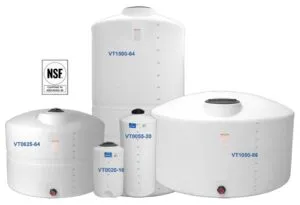

Vertical – Dome Top tanks are free standing with a flat bottom for indoor or outdoor installations. Ace Roto-Mold Vertical Tanks conform to the requirements of NSF/ANSI Standard 61. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.
| Part No. | Capacity | Weight | Dimensions | Lid | Fitting | Specific Gravity |
| VT0010-12† | 10 Gallon | 9 | 12 x 25 | 8″ | 3/4″ | 2.0 |
| VT0020-16† | 20 Gallon | 15 | 16 x 28 | 8″ | 3/4″ | 2.0 |
| VT0025-18† | 25 Gallon | 14 | 18 x 30 | 5″ | 3/4″ | 2.0 |
| VT0040-18† | 40 Gallon | 19 | 18 x 43 | 5″ | 3/4″ | 2.0 |
| VT0055-20† | 55 Gallon | 23 | 20 x 47 | 5″ | 1″ | 2.0 |
| VT0065-23† | 65 Gallon | 27 | 23 x 42 | 5″ | 1″ | 2.0 |
| VT0110-32 | 110 Gallon | 42 | 32 x 41 | 5″ | 2″ Top | 2.0 |
| VT0135-23 | 135 Gallon | 47 | 23 x 82 | 16″ | 1″ | 2.0 |
| VT0300-42 | 300 Gallon | 74 | 42 x 55 | 8″ | 2″ | 2.0 |
| VT0405-52 | 405 Gallon | 92 | 52 x 48 | 8″ | 2″ | 2.0 |
| VT0425-42 | 425 Gallon | 102 | 42 x 75 | 8″ | 2″ | 2.0 |
| VT0505-46 | 505 Gallon | 120 | 46 x 80 | 16″ | 2″ | 2.0 |
| VT0550-52 | 550 Gallon | 118 | 52 x 66 | 8″ | 2″ | 2.0 |
| VT0600-46 | 600 Gallon | 132 | 46 x 91 | 16″ | 2″ | 2.0 |
| VT0625-64 | 625 Gallon | 102 | 64 x 50 | 8″ | 2″ | 2.0 |
| VT0800-46 | 800 Gallon | 177 | 46 x 118 | 16″ | 2″ | 1.7 |
| VT0900-46 | 900 Gallon | 222 | 46 x 132 | 16″ | 2″ | 1.7 |
| VT1000-64 | 1000 Gallon | 252 | 64 x 81 | 16″ | 2″ | 1.7 |
| VT1050-86 | 1050 Gallon | 192 | 86 x 54 | 16″ | 2″ | 1.7 |
| VT1200-64 | 1200 Gallon | 277 | 64 x 97 | 16″ | 2″ | 1.7 |
| VT1350-86 | 1350 Gallon | 230 | 86 x 65 | 16″ | 2″ | 1.7 |
| VT1500-64 | 1500 Gallon | 337 | 64 x 115 | 16″ | 2″ | 1.7 |
| VT1500-86 | 1500 Gallon | 252 | 86 x 69 | 16″ | 2″ | 1.7 |
| VT1525-64 | 1525 Gallon | 352 | 64 x 122 | 16″ | 2″ | 1.7 |
| VT1650-86 | 1650 Gallon | 280 | 86 x 74 | 16″ | 2″ | 1.7 |
| VT2000-64 | 2000 Gallon | 467 | 64 x 156 | 16″ | 2″ | 1.7 |
| VT2000-90 | 2000 Gallon | 377 | 91 x 84 | 16″ | 2″ | 1.7 |
| VT2050-86 | 2050 Gallon | 402 | 86 x 93 | 16″ | 2″ | 1.7 |
| VT2150-102 | 2150 Gallon | 417 | 102 x 71 | 16″ | 2″ | 1.7 |
| VT2500-90 | 2500 Gallon | 422 | 91 x 103 | 16″ | 2″ | 1.7 |
| VT2500-96 | 2500 Gallon | 445 | 96 x 92 | 16″ | 2″ | 1.7 |
| VT3000-90 | 3000 Gallon | 552 | 91 x 120 | 16″ | 2″ | 1.7 |
| VT3000-96 | 3000 Gallon | 582 | 96 x 109 | 16″ | 2″ | 1.7 |
| VT3100-102* | 3100 Gallon | 552 | 102 x 103 | 16″ | 2″ | 1.7 |
| VT3400-102* | 3400 Gallon | 587 | 102 x 107 | 16″ | 2″ | 1.7 |
| VT4000-96* | 4000 Gallon | 902 | 96 x 140 | 16″ | 2″ | 1.7 |
| VT4200-96* | 4200 Gallon | 952 | 96 x 148 | 16″ | 2″ | 1.7 |
| VT4995-142 | 4995 Gallon | 952 | 142 x 90 | 16″ | 3″ | 1.7 |
| VT5000-102* | 5000 Gallon | 1302 | 102 x 156 | 16″ | 3″ | 1.7 |
| VT5150-102* | 5150 Gallon | 1352 | 102 x 161 | 16″ | 3″ | 1.7 |
| VT6250-102* | 6250 Gallon | 1552 | 102 x 194 | 16″ | 3″ | 1.7 |
| VT6500-120* | 6500 Gallon | 1502 | 120 x 152 | 16″ | 3″ | 1.7 |
| VT7000-142* | 7,000 Gallons | 1752 | 142 x 125 | 16″ | 3″ | 1.7 |
| VT7800-120* | 7800 Gallon | 1902 | 120 x 176 | 16″ | 3″ | 1.7 |
| VT8000-120* | 8000 Gallon | 1932 | 120 x 180 | 16″ | 3″ | 1.7 |
| VT9000-142* | 9000 Gallon | 2002 | 142 x 154 | 16″ | 3″ | 1.7 |
| VT9150-120* | 9150 Gallon | 2202 | 120 x 203 | 16″ | 3″ | 1.7 |
| VT9500-120* | 9500 Gallon | 2352 | 120 x 213 | 16″ | 3″ | 1.7 |
| VT10500-2500* | 10,500 Gallon | 2502 | 143 x 179 | 16″ | 3″ | 1.6 |
| VT10500-2800* | 10,500 Gallon | 2802 | 143 x 179 | 16″ | 3″ | 1.8 |
| VT12500-142* | 12,500 Gallon | 3402 | 142 x 205 | 16″ | 3″ | 1.7 |
| VT15500-142 | 15,500 Gallon | 4002 | 142 x 243 | 16″ | 3″ | 1.7 |
| Part No. | Capacity | Weight | Dimensions | Lid | Fitting | Specific Gravity |
Request a Quote
Use the form below to submit a request for vertical dome top poly tanks.
We’ll respond with a fair and accurate quote as soon as possible.
